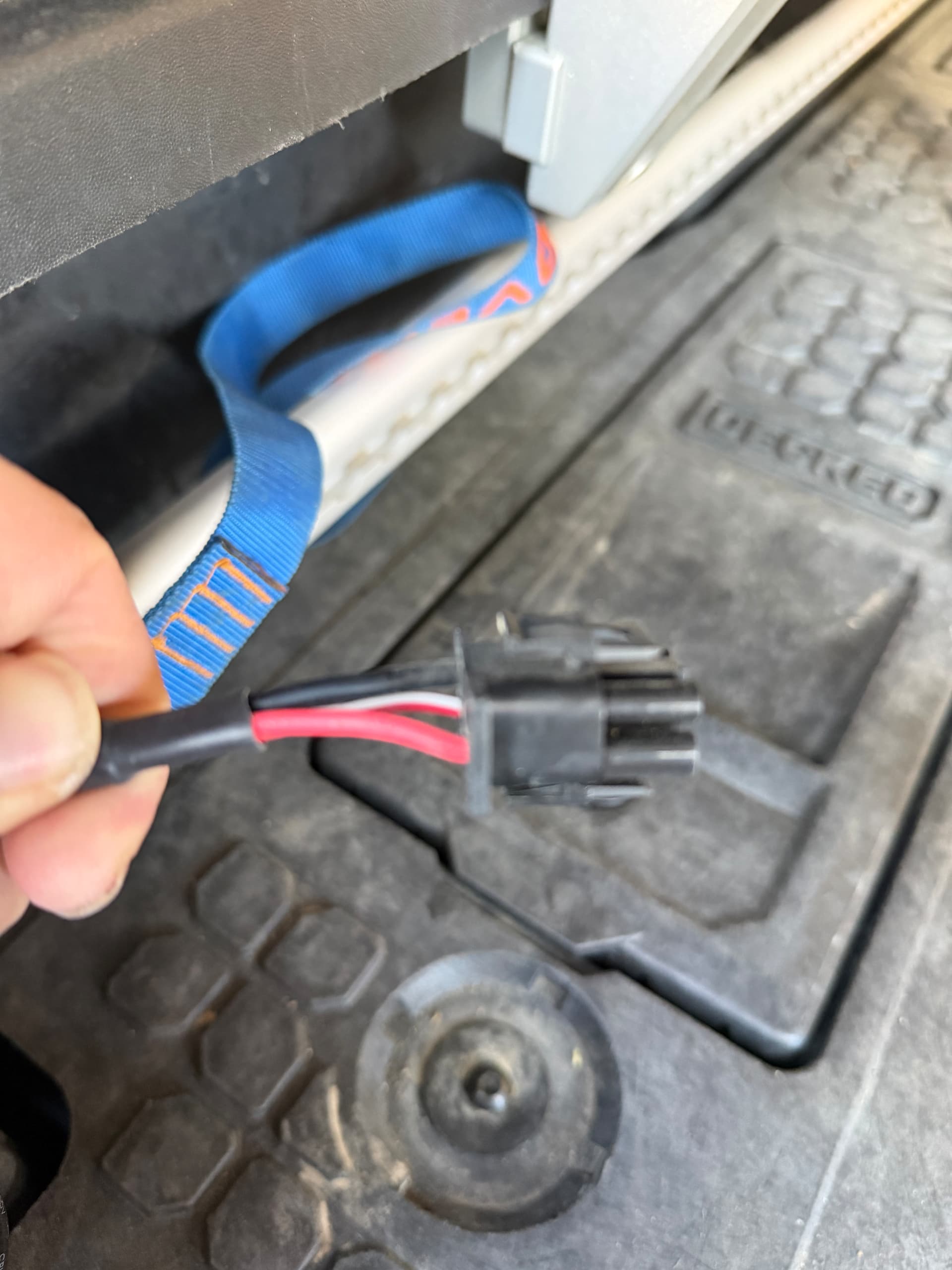

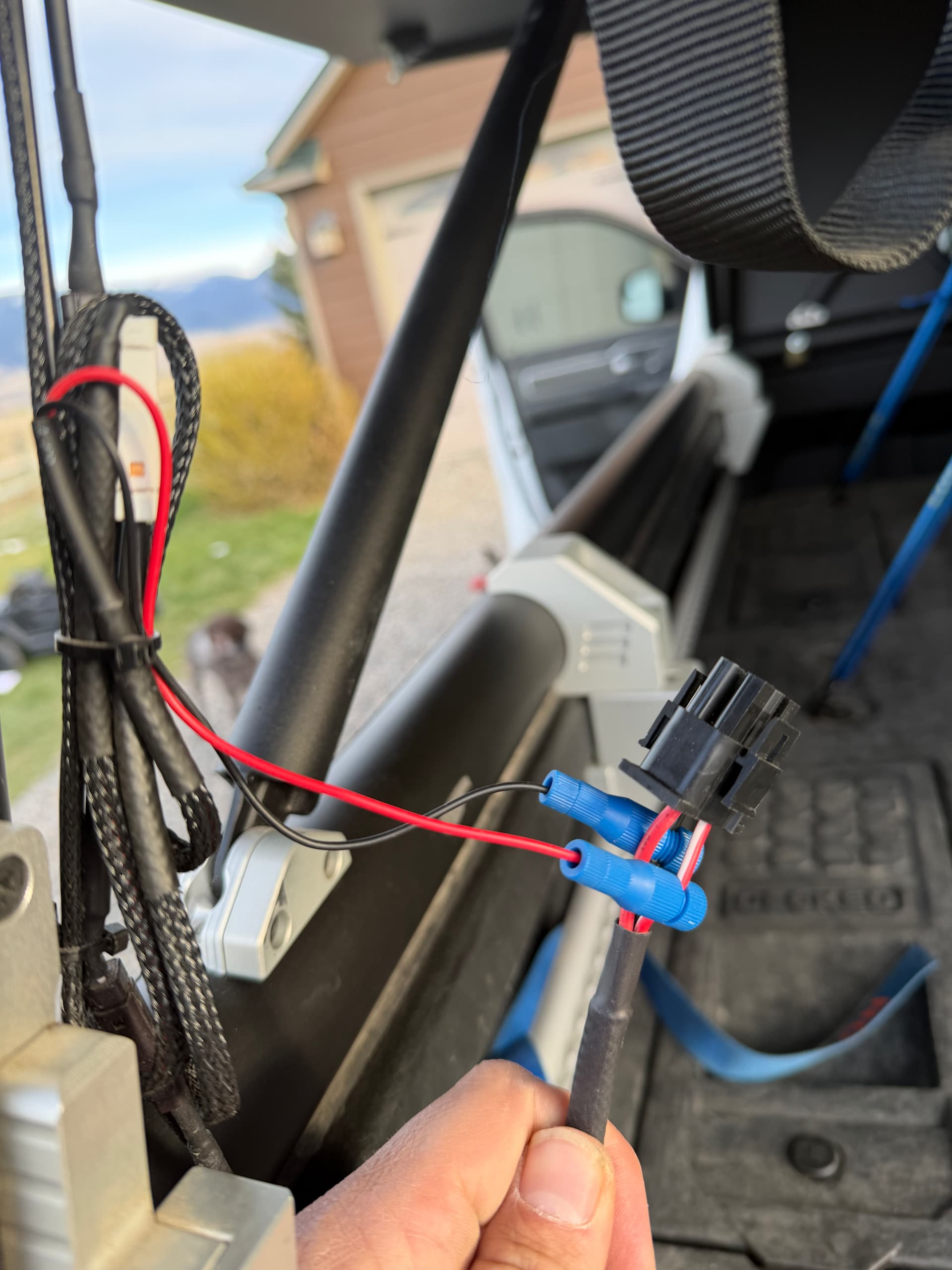

My truck previously was wired to hook up to a Leer topper 3rd brake light, but I can’t figure out how to connect to the GFC provided connection - 1st photo is the connection from the truck, and 2nd is from the GFC. Can anyone help?
From what I was told at the install, you’d clip the connectors on the GFC end and replace them to snap into the other wiring harness. I have the same thing going on - it’ll be a few days before I get to this but will post up if you haven’t gotten it done before I do.
1 Like
Hard to know without a multi-meter, but I’d go black to solid black and red to solid red. I’d guess the other wires in the leer harness are dome lights.
The GFC supplied connectors have a needle you will see if you unscrew the end. You can just spear them into the wires up from the connector.
I’d personally probably buy another 4 pin connector are put the GFC wires into it to keep things clean.
2 Likes
As @jedgar said, you’ll need a multimeter to be sure. I wouldn’t trust assumptions on what is what. Depending on how it was wired out it may be set up to also be tied to signals (considering it’s 4 pins). In my situation the topper wire out I got from Cap-it when I had my cap installed is, 12V constant (dome light), Brake light, Ground. 4 could be Ground, L signal, R signal, Brakes…could be Ground, 12V, Brakes, and nothing else…only a Meter can tell you. If you’re unfamiliar with using these tools I could suggest you probably have a pal close by with that knowledge to help you out.
The last thing you want to do is be blowing fuses, or worst case burning your truck down.
